About this item

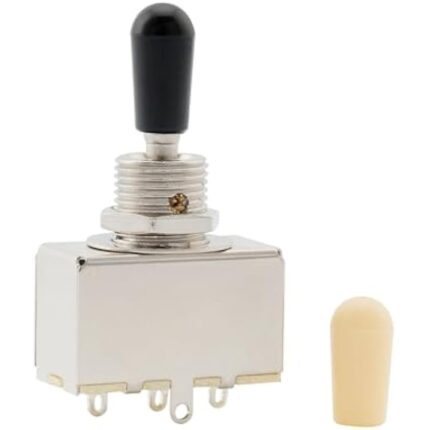

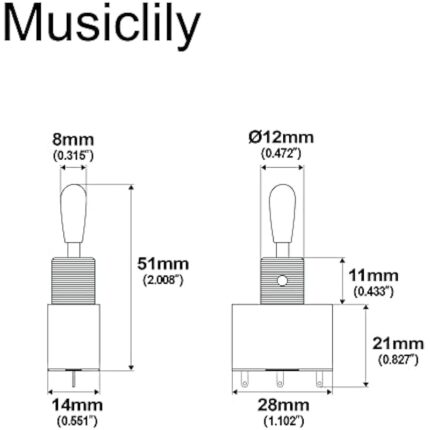

• Fits electric guitar
• Made of metal alloy
• Sealed box switch
• With nut and washers
• Package included: 1 Pc Guitar Switch

About this item

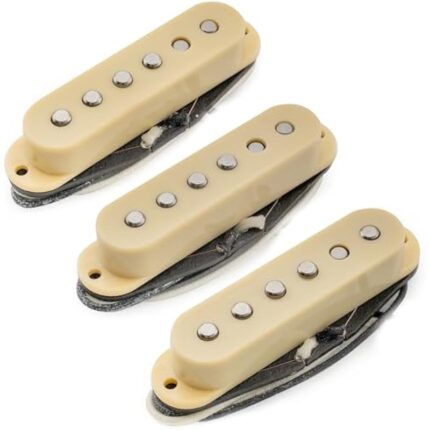

• Fits Strat style electric guitar, neck/middle/bridge position
• Staggered polepieces Alnico 5 magnet pickup, vintage-style tones, is similar with F Custom '54 Strat pickups, staggered polepieces for balance output, reverse wound and reverse polarity (RWRP) middle pickup for hum cancelling, Alnico 5 magnets add more focus and enhanced dynamics, produce classic bell tones, and clear harmonic enhancement, authentically recreate the clear tones and heightened sustain that made the Strat the most revered guitar in rock history

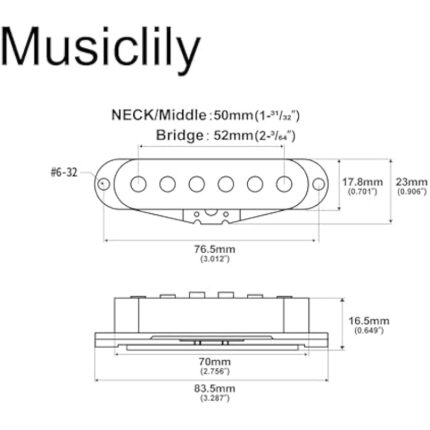

• Polepiece spacing: the neck and middle is 50mm (1-31/32 inch), the bridge is 52mm (2-3/64 inch), mounting screw holes distance: 76.5mm (3-1/64 inch)
• Resistance(neck/middle/bridge): 5.6K/5.9K/7K, inductance(neck/middle/bridge): 2.2H/2.4H/3.2H. Tolerance: 0.5K for single coil, 1K for humbucker. The resistance value will change according to temperature and humidity. Usually, the resistance value will be high in hot and dry weather, be low in cold and wet weather. In extreme cases, the resistance value tolerance will be greater. Magnet: Alnico 5; fiber made bobbin and baseplate; wiring: 2P (vintage cloth wire)
• Package includes: neck & middle & bridge pickups set and mounting accessories. Note: Our screws maybe will not fit your usage, please use your own if you can

About this item

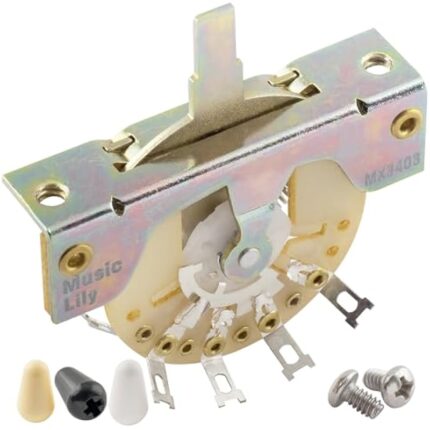

• A clone version of CRL switch (USA Fender Strat stock switch), fits most Strat style electric guitars
• Durable, reliable and noise free. Good choice for guitarists, always used for high end guitars, superior to many other blade switches available on the market
• Steel plate and nickel plated copper lugs, traditional spring loaded, with stainless steel mounting screws to bring more durability
• Mounting screw holes spacing: 41.3mm (1-5/8 inch); Cavity depth required: 33.3mm (1-5/16 inch); Blade width: 4.8mm (3/16 inch); Pickguard slot required: 24.9*1.3mm (0.980*0.051 inch)
• Package includes: 1 piece guitar switch; white, black and cream tips and mounting screws

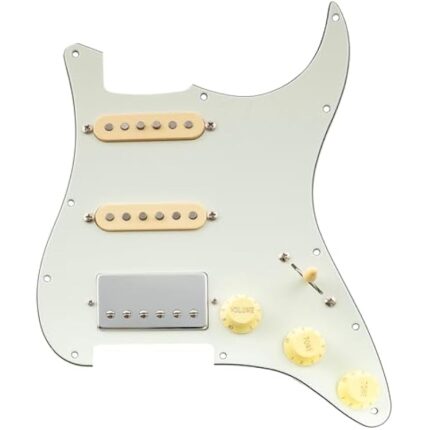

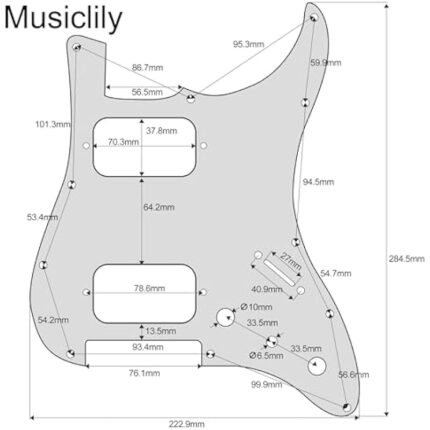

• Good choice to upgrade Squier Strat HSS or other similar style import guitar, also fits most American/Mexico modern standard Strat HSS style electric guitar, take your tone to the next level
• Featuring Artec pickups with Alnico 5 magnet. The neck and middle (6.3K/6.5K) has staggered pole pieces which are designed to emulate Fender's classic 60's American Strat pickups, with clear chimey tones and authentic vintage sound. Reverse wound and reverse polarity middle pickup for hum cancelling. The bridge (16.8K) is standard covered humbucker, high output, sounds thick and full, great for overdrive, hard rock or clean classic blues tones
• Hand-built by experienced technicians in-house, we choose premium parts from trusted resource, focus on every detail during wiring and testing, we take pride in our work
• Come with the user guide which have professional wiring diagram to solve your wiring problem

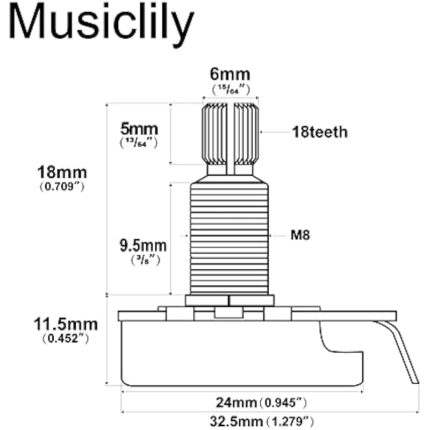

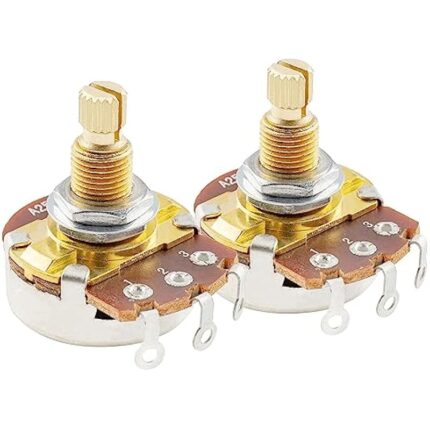

• Package includes: 1 piece of pre-wired pickguard. Artec Pickups (Neck/Middle/Bridge): Resistance is 6.3K/6.5K/16.8K, Magnet: Alnico 5; Polepiece spacing: 50mm/52mm/52.5mm; Pots: Full Brass knurled shaft HD Series A250K x 3; Import Style Korea Made Heavy Duty 5-way switch and output jack; Orange Drop .022µF capacitor and Treble Bleed Mod; Vintage style push-back clothing wire

About this item

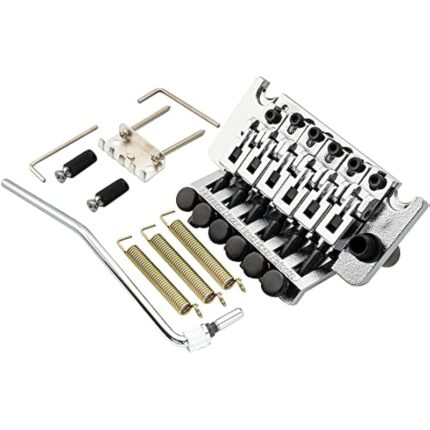

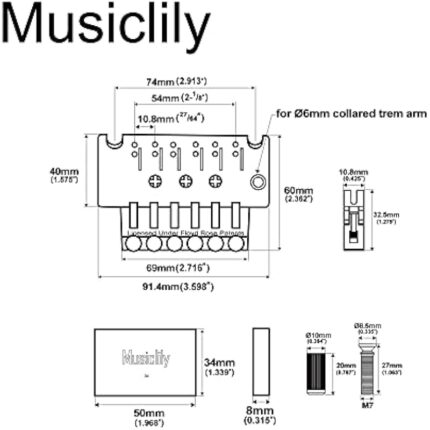

• Licensed Under Floyd Rose Patents, good replacement for electric guitar double locking tremolo bridge system, please check your guitar bridge slot size for installation before you buy
• String spacing: 10.8x5=54mm (2-1/8 inch), mounting studs spacing: 74mm (2-29/32 inch), bushing outside diameter: 10mm (25/64 inch), M7 thread post

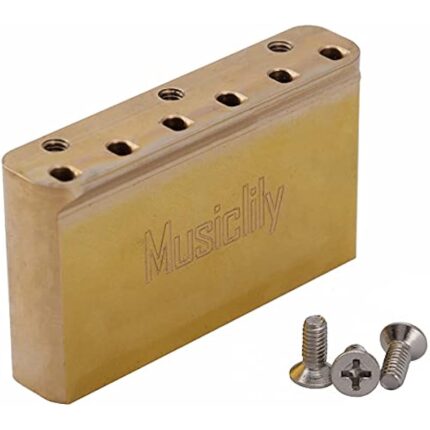

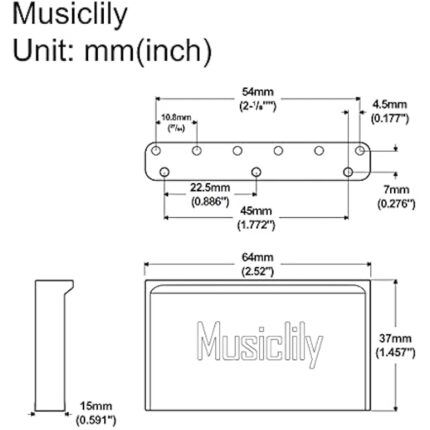

• Steel plate, zinc alloy saddles, 34mm tall full solid brass block, with 6mm collared thread steel trem arm
• Full metal construction, stable and durable, well finished, full solid brass block with precise digital CNC processing technic, bring more sustain, good option to upgrade your guitar
• Package included: full set of bridge and mounting accessories
